Heavy-Duty Cone Crusher Main Shafts & Complete Assemblies

The main shaft is the most stressed component in any cone crusher. At Future Green Machinery (FGM), we engineer high-durability solutions forged from premium-grade alloy steel. Our precision-machined main shafts meet or exceed OEM specifications, ensuring your plant stays online even in the harshest crushing environments.

TECHNICAL SPECIFICATIONS

Feature	Specification / Detail
Material	Forged 4340 / 4140 Alloy Steel (Custom alloys available)
Processing	Vacuum Degassing + Open Die Forging
Heat Treatment	Quenched & Tempered + Surface Induction Hardening
Surface Finish	Ra 0.8–1.6 μm (Precision bearing & seal areas)
Runout Tolerance	Within 0.1 mm (Maximum precision)
Compatibility	Direct 100% replacement for major OEM brands (Metso, Sandvik, etc.)

CROSS-BRAND COMPATIBILITY MATRIX

Our comprehensive portfolio covers cone crusher wear parts, concaves, bowl liners, cone liners, high manganese casting steel, copper eccentric bushings, and complete bronze parts. We supply high-precision main shafts for the following series:

Equipment Series	Supported Crusher Models
HP Series	HP100, HP200, HP300, HP400, HP500, HP800, HP3, HP4, HP5, HP6, HP7, HP8, HP900
GP Series	GP11F, GP11M, GP100, GP200, GP300, GP550, GP100S, GP200S, GP300S, GP500S, GP550S, GP7, GP220
CH / CS Series	CH420, CH330, CH430, CH440, CH660, CH870, CH880, CH830i, CH840i, CH860i, CH865i, CH870i, CH890i, CH895i \| CS420, CS430, CS440, CS660, CS840i
H / S Series	H2800, H3800, H4800, H6800, H7800, H8800, H2000, H3000, H4000, H8000 \| S2800, S3800, S4800, S6800, S2000, S3000, S4000, S6000
Finlay / Cedarapids	C-1554, C-1550, C-1545, C-1540 \| TC1000, TC1150, TC1300, TG120, TG320, MVP380X
QH / Symons / MP	QH441, QS332, UH640 \| 2", 3", 4", 4.25", 5.5", 7" \| MP800, MP1000, MP1250, MP2500

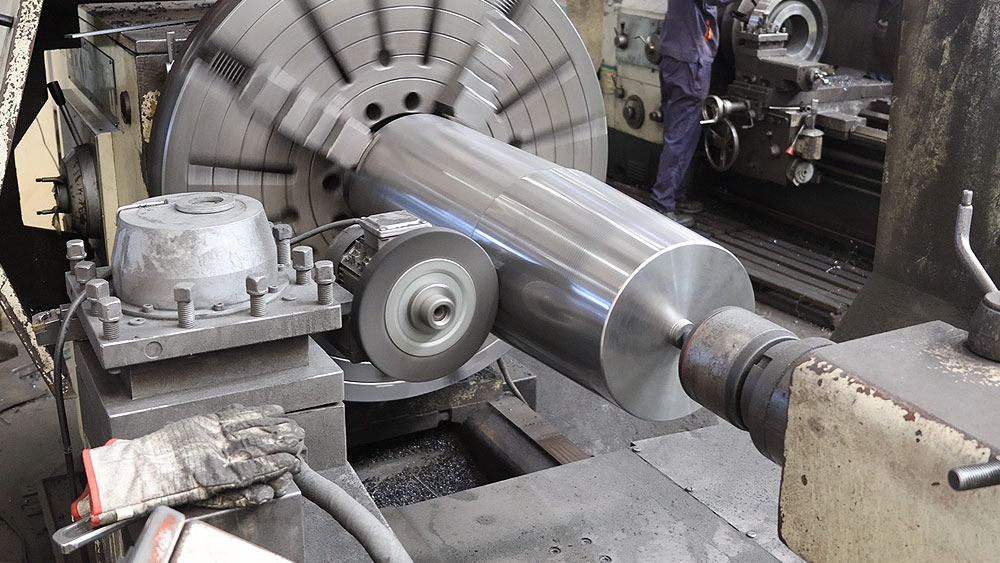

Cone Crusher Main Shaft Precision Machining

Why Choose FGM Main Shafts? Engineering for Extreme Duty

Superior Fatigue Resistance: Forged from 4340/4140 high-alloy steel, our shafts are built to handle the constant cyclic loading of hard-rock crushing.
Precision-Machined Journals: Our advanced CNC grinding ensures a ±0.05 mm tolerance on bearing surfaces, reducing friction and preventing premature bearing seizure.
Advanced Surface Hardening: Every shaft undergoes specialized Induction Hardening, creating a wear-resistant "outer skin" while maintaining a flexible, high-strength core to prevent snapping.

Tapered Mantle Interface: Engineered for a perfect fit to ensure uniform crushing force distribution.
High-Torque Keyways: Precision-cut to eliminate slippage and handle peak torque spikes without deformation.
100% Quality Certified: Each unit passes through strict ultrasonic testing (UT) and dimensional verification. Material MTR certifications are provided.

The "Zero-Downtime" Advantage

We know that every hour your crusher is down costs you money. Our shafts are designed for rapid installation (OEM-matched dimensions mean no on-site adjustments), extended bearing life, and lower operating costs.

💡 Need accompanying parts? We also supply over 3,500 cone crusher components, including bronze eccentric bushings and customized 18% / 22% Manganese wear liners.

RICH STOCK FOR YOUR URGENT NEEDS

FREQUENTLY ASKED QUESTIONS

Are your main shafts compatible with my OEM cone crusher?

Yes, absolutely. Our replacement main shafts are engineered to exact OEM specifications. They are direct, drop-in replacements for major brands like Metso (HP, GP Series), Sandvik (CH, CS Series), Cedarapids, Symons, and more. No on-site adjustments or modifications are needed.

Why do you use 4340 / 4140 Alloy Steel for the main shaft?

These premium forged high-alloy steels offer superior fatigue resistance, tensile strength, and toughness. The main shaft bears extreme cyclic loading during hard-rock crushing. Vacuum degassing and open die forging of these alloys ensure the internal structure is free of voids, maximizing the operational lifespan of the shaft.

What is "Surface Induction Hardening" and why is it important?

Induction hardening is an advanced heat treatment process. It creates a highly wear-resistant "outer skin" on critical bearing and seal areas, reducing friction and wear. Simultaneously, it allows the inner core of the shaft to remain flexible and tough, which prevents the shaft from snapping or breaking under high torque and stress.

Do you supply other cone crusher parts besides the main shaft?

Yes! FG Machinery carries over 3,500 cone crusher spare parts. This includes bronze bushings, sockets, feed plates, head nuts, gears, pinions, and manganese wear parts (mantles and bowl liners). We even manufacture complete head & shaft assemblies for quick replacements.

Need an Urgent Main Shaft Replacement?

Secure factory-direct pricing and 68-hour global dispatch on standard models.

CONTACT OUR ENGINEERING TEAM
