HP300 HP500 Srone Crusher Parts Manganese Steel Wear Parts Mantle and Concave Cone Crusher of Mining Parts
✅ Precision Engineered Compatibility
✅ Enhanced Durability
✅ Maintenance Optimization
✅ Cost Efficiency 40-60% cost savings vs. OEM
✅ Local after-sales team
Item No :
FG00788216Order(MOQ) :
1Product Origin :
OEMLead Time :
15 daysContact :
+86 188 2010 4928Product Name: Crusher mantle / symons concave / Manganese liner / Cone Crusher wear parts / bowl liner / cone liners / high Manganese casting steel cone liners / cone parts / crusher wearing parts / jaw crusher parts / fixed jaw plate / movable jaw plate / jaw liners.
Applications: Widely used in the mining industry, Quarrying & Aggregate, metallurgical industry, construction industry, chemical industry, and silicate industry for crushing hard and medium-hard ore and rock, such as iron ore, limestone, copper ore, sandstone, quartz, and so on.
Following is our normal material component list. We also can customize the composition according to your specific requests.
| Material | C (%) | Mn (%) | Cr (%) | P (%) | Si (%) | S (%) | Mo (%) | Ni (%) | Cu (%) |
|---|---|---|---|---|---|---|---|---|---|
| ZGMn13Cr2 | 1.25~1.35 | 12.7~13.5 | 2.0~2.2 | ≤0.06 | 0.5~1 | ≤0.06 | - | - | - |
| ZGMn18Cr2 | 1.25~1.35 | 17~18.5 | 2.0~2.2 | ≤0.06 | 0.5~1 | ≤0.06 | - | - | - |
| ZGMn22Cr2 | 1.1~1.4 | 20~24 | 1.5~2.5 | ≤0.06 | 0.3~0.8 | ≤0.04 | - | - | - |
| KMTBCr26 | 3.6-3.75 | 0.5-0.9 | 25-27 | ≤0.06 | 0.4-0.8 | ≤0.06 | 0.4-0.5 | 0.4-0.5 | 0.4-0.5 |

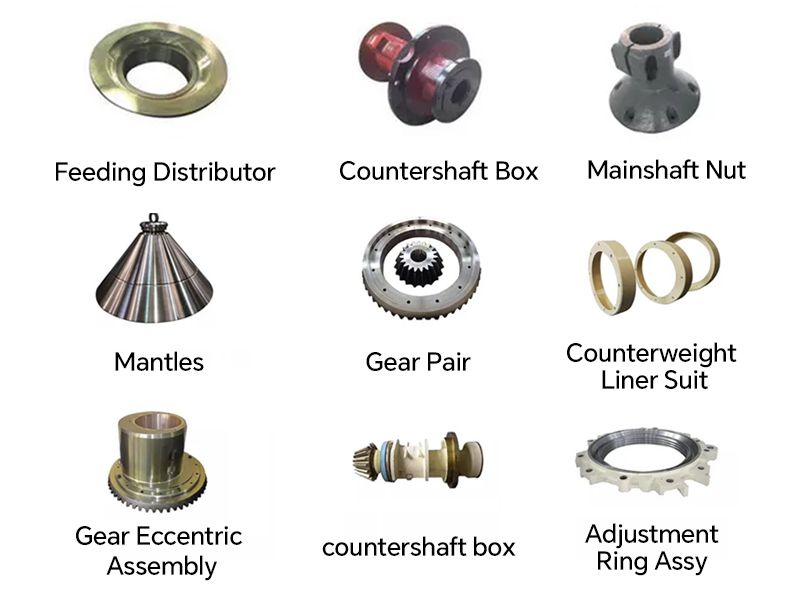

The crusher spare parts we mainly provide can perfectly suit the brand models below:
| Cone Crusher Series | |
| CH/CS series | CH420, CH430, CH440, CH660, CH860, CH865, CH870, CH890, CH895 CS420, CS430, CS440, CS660 |
| HP series | HP100, HP200, HP300, HP400, HP500, HP800 |
| GP series | GP11, GP100, GP200, GP300, GP500, GP220, GP330, GP550, GP100S, GP200S, GP300S, GP500S |
| MP series | MP800, MP1000, MP1250, MP2500 |
| Jaw Crusher Series | |
| C series | C63, C80, C95, C96, C105, C106, C100, C110, C120, C125, C140, C145, C150, C160, C200 |
| Impact Crusher Series | |
| NP series | NP1213, NP1315, NP1520, NP1620, NP2023 |
| Gyratory Crusher Series | |
| S series | S4265, S5065, S5475, S6089, S6275, S60110 |

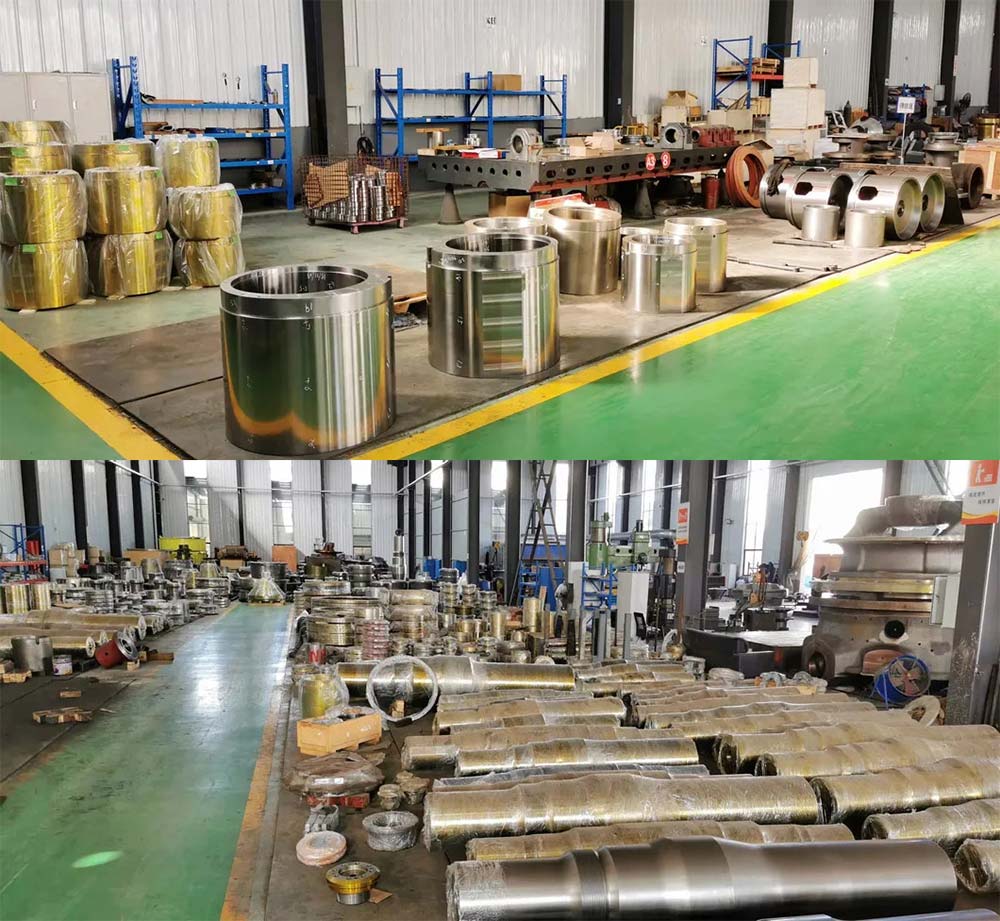

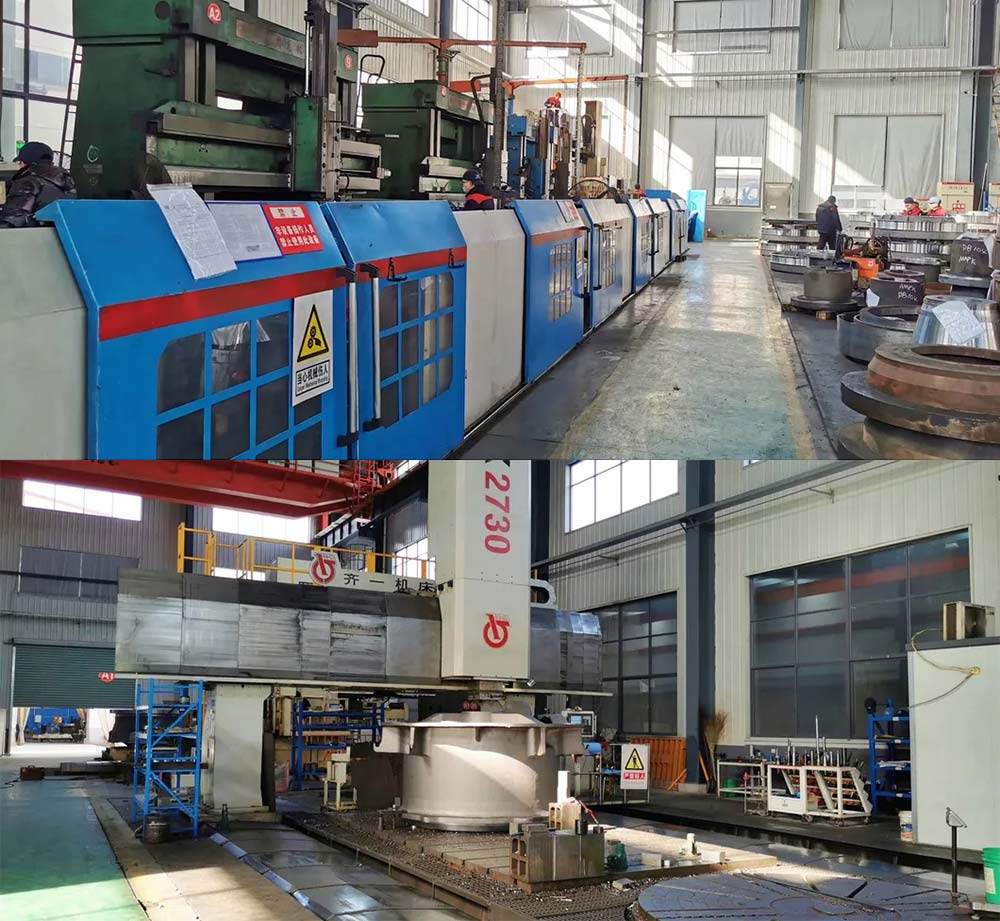

Our company is equipped with full-time technical personnel who can analyze processing drawings and compile processing technology by themselves, maintaining on-site process discipline supervision. We also have a professional QC team of more than 5 employees to inspect the size and quality of all workpieces. All measuring equipment is imported from top brands (Japanese Sanfeng, Germany Marr, etc.). Equipped with a portable three-coordinate measuring machine, we insist on regular inspections of our measuring equipment to guarantee the highest quality of our products.
| No. | Equipment Type | Model / Specs | Qty | Capacity | Brand / Origin |
|---|---|---|---|---|---|
| 1 | CNC vertical lathe | C5380 | 1 | 75T | Carrying heavy CNC |
| 2 | CNC vertical lathe | CK5225 | 1 | 13T | Qiqihar first machine tool |
| 3 | CNC vertical lathe | CK5225 | 1 | 13T | Chengqi two tile machine CNC |
| 4 | CNC vertical lathe | CK5225 | 1 | 13T | Chengqi two tile machine CNC |
| 5 | CNC vertical lathe | CK5240 | 1 | 20T | Chengqi two tile machine CNC |
| 6 | CNC vertical lathe | CK5240 | 1 | 32T | Chengqi two tile machine CNC |
| 7 | CNC vertical lathe | CK5240 | 1 | 32T | Chengqi two tile machine CNC |
| 8 | Turing center | TAC-16A | 1 | 8T | By Shenyang Heath |
| 9 | CNC vertical lathe | CK5116 | 1 | 6T | Chengqi two tile machine CNC |
| 10 | CNC Floor Boring and Milling Machine | TJK6920 5mx10m | 1 | 50T Turntable | Shenyang Kunji |
| 11 | Turning & milling complex machining center | XK2730*80 4mx10m | 1 | 80T | Carrying heavy CNC |
| 12 | Longmen pentahedron machining center | GRU2340 3mx4m | 1 | 25T | By Ningbo Haitian |
| 13 | 130 horizontal boring | T62131 | 1 | 10T | Shenyang Zhongjie |
| 14 | 130 floor boring | T6913 cp130 | 1 | 30T | Shenyang Zhongjie |
| 15 | CNC sleeper | CK61125 | 21 | 8T | Tianshui |
| 16 | Radial drilling machine | Z3080 | 3 | 10T | Shenyang Zhongjie |
| 17 | Radial drilling machine | Z3050 | 1 | 5T | Shenyang Zhongjie |
| 18 | Universal Radial Drilling Machine | Z3040 | 1 | 5T | Shenyang Zhongjie |
| 19 | Tapping machine | M8-M36 | 2 | - | Taiwan |
| 20 | Haucken Surface Finishing Machine | - | 1 | - | - |
Guangzhou Future Green Machinery Co.,Ltd. founded in 2021, our office is located in Guangzhou. We are an innovative enterprise. The company always ensures the technological advancement of the equipment: higher efficiency, lower power consumption, and more environmental protection. Our main products are crushing equipment, sand making equipment, powder making machinery, feeding equipment, cement plant supporting machinery, etc. The company will continue to explore, research, develop, and innovate in new fields, while constantly helping customers solve various difficulties and problems, and creating greater value for customers.
Our mantles, concaves, and jaw plates are primarily cast from premium high-manganese steel (such as ZGMn13Cr2, ZGMn18Cr2, ZGMn22Cr2) and high-chrome iron (KMTBCr26). These materials provide exceptional impact toughness and wear resistance for hard rock crushing.
Yes. With our own foundry and advanced manufacturing equipment, we can adjust the Carbon, Manganese, and Chromium ratios to perfectly match the abrasiveness of the specific ore you are crushing, thereby extending the wear life.
Absolutely. We provide 100% adaptable aftermarket wear parts for world-leading brands. This includes the Sandvik CH/CS and S series, Metso HP, GP, and MP series, as well as C series jaw crushers and NP series impact crushers.
Precision is guaranteed by our state-of-the-art facility, which houses over 20 sets of heavy-duty CNC vertical lathes, turning & milling centers, and floor boring machines. All parts are subjected to strict QC inspections using portable three-coordinate measuring machines prior to delivery.
✅ Advanced Metallurgy ✅ Interchangeable with Metso/Sandvik/Terex models (MP1000-CH880-C155) ✅ Zero-Run-In Performance，Pre-engineered clearance ✅ Cost Efficiency 40-60% cost savings vs. OEM ✅ Local after-sales team
View More
✅ 360° Full-Range Supply Capability ✅ Precision Sand Casting Superiority ✅ OEM-Exceeding Fit Performance ✅ Downtime Elimination Engineering ✅ Local after-sales team
View More
✅ 360° Full-Range Supply Capability ✅ Precision Sand Casting Superiority ✅ OEM-Exceeding Fit Performance ✅ Downtime Elimination Engineering ✅ Local after-sales team
View More
At Future Green Machinery, we redefine industrial power through Nordic engineering and eco-intelligent design. Our SGS-certified solutions balance high-performance crushing with sustainable efficiency to future-proof your global mining operations. ✅ OEM Compatibility: Perfect fit for Sandvik CV200/Terex Canica/Metso Barmac replacements ✅ Custom Engineering: Tailored for basalt/river pebble/granite/iron ore specifics ✅ Total Cost Ownership: 3-year ROI guarantee with documented case studies ✅ Sustainable Production: Recyclable wear components with take-back program
View More
✅ Advanced Metallurgy ✅ Interchangeable with Metso/Sandvik/Terex models (MP1000-CH880-C155) ✅ Zero-Run-In Performance，Pre-engineered clearance ✅ Cost Efficiency 40-60% cost savings vs. OEM ✅ Local after-sales team
View More

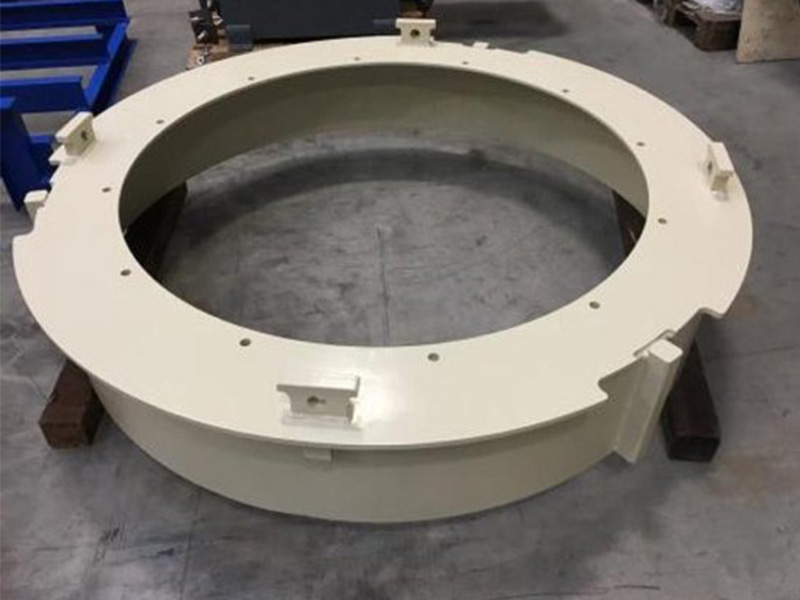

Cone Crusher Adjustment Ring is a crucial component that plays a pivotal role in cone crusher operation. its facilitates precise adjustments, including the gap between the mantle and concave, allowing for fine-tuned control over the particle size produced during crushing.Cone Crusher Adjustment Ring is a key component for enhancing the performance and production efficiency of cone crushers. Whether used in ore mining, construction, or mining industries, it is indispensable for ensuring the precision and reliability of the crushing process.
View More
✅ Advanced Metallurgy ✅ Interchangeable with Metso/Sandvik/Terex models (MP1000-CH880-C155) ✅ Zero-Run-In Performance，Pre-engineered clearance ✅ Cost Efficiency 40-60% cost savings vs. OEM ✅ Local after-sales team
View More
✅ Precision Engineered Compatibility ✅ Enhanced Durability ✅ Maintenance Optimization ✅ Cost Efficiency 40-60% cost savings vs. OEM ✅ Local after-sales team
