✅ Precision Material Handling
✅ Military-Grade Durability
✅ Smart Operation Ecosystem
✅ Value-Driven Engineering
✅ Local after-sales team
Item No :
FG201530Order(MOQ) :
1Product Origin :
ChinaLead Time :
20 daysContact :
+86 18420105150The belt conveyor produced by our company features large conveying capacity, simple structure, convenient maintenance, and standardized components. It is widely used in mining, metallurgy, coal, and other sectors to convey loose materials or finished goods.

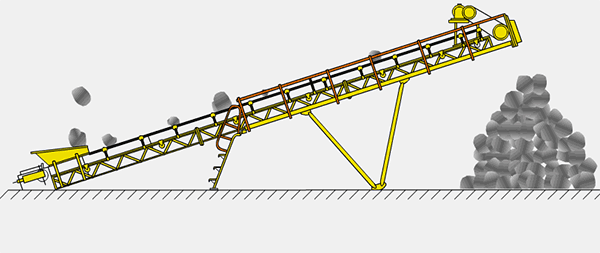

The belt conveyor uses the conveyor belt as both a traction and load-bearing component. The belt is wound around the drive roller and the tensioning roller to form an infinite loop. Upper and lower idler rollers support the belt to limit deflection and sag, while the tensioning device provides the required operational tension.
| Belt Width (mm) |
Belt Length (m) / Power Requirement (kW) | Belt Speed (m/s) |
Capacity (t/h) |
||
|---|---|---|---|---|---|
| Short (<10-12m) | Medium (10-20m) | Long (20-50m) | |||
| 400 | <12m / 2.2kW | 12-20m / 2.2-4kW | 20-25m / 3.0-7.5kW | 1.25 - 2.0 | 30 - 60 |
| 500 | <12m / 3kW | 12-20m / 3-5.5kW | 20-30m / 5.5-7.5kW | 1.25 - 2.0 | 40 - 80 |
| 650 | <12m / 4kW | 12-20m / 4-5.5kW | 20-30m / 5.5-11kW | 1.25 - 2.0 | 80 - 120 |
| 800 | <10m / 4kW | 10-15m / 4-5.5kW | 15-30m / 5.5-15kW | 1.25 - 2.0 | 120 - 200 |
Our heavy-duty belt conveyors can handle steep inclines up to 25 degrees without material backflow. This is achieved using our patented anti-slip tape and zero-spillage ceramic trim skirt sealing system.
Yes! The standard operational temperature is between -20°C and +40°C. However, with our specialized nano-coated HDPE rollers and customized rubber covers, the system operates flawlessly in extreme conditions, such as the -35°C severe cold in our Inner Mongolia aggregate line projects.
Vibrating feeders, also known as vibrating feeders, are deployed upstream of primary crushing equipment. They are used to uniformly, regularly, and continuously transport bulk and granular materials from the storage silo to the next production line. The grate-type feeder also performs coarse screening, removing dirt and impurities from the material and controlling the feed rate to match the processing capacity of the subsequent crushing and screening lines. They are essential equipment for complete production lines, featuring a sturdy structure, strong impact resistance, and excellent wear resistance. Applications: Used in combined crushing and screening equipment in industries such as metallurgy, coal mining, mineral processing, building materials, chemicals, and abrasives.d Metallurgy
View More
✅ Precision Material Handling ✅ Military-Grade Durability ✅ Smart Operation Ecosystem ✅ Value-Driven Engineering ✅ Local after-sales team
View More
✅ 360° Rotation with 230° Swing ✅ 4:1 Safety Factor on All Loads ✅ Precision-Forged, >1080 MPa Strength ✅ Full Metric & Custom Thread Sizes ✅ Corrosion-Resistant for Harsh Environments
View MoreEmergency:
