EQUIPMENT ADVANTAGES & STRUCTURE

1. Power System

Located in the middle of the frame, it is mainly composed of a diesel engine, a radiator, a fuel box, an air filter, an exhaust purification device, a fuel filter, an oil filter, etc. In addition to providing power for driving and braking during travel, it can also provide power for other actions except rock drill impact and rotation.

2. Drive System

Mainly composed of front and rear axles, tires, gearboxes, drive shafts, etc., it is primarily used for walking. The drive system converts the engine power into the driving force of the vehicle while meeting all braking requirements. Standard equipped with a wet bridge.

3. Frame

It is mainly divided into three parts: the front frame, the main frame, and the rear end. The front frame and the main frame are hingedly connected with a vertical pin shaft, which can complete the articulated steering function of the vehicle. The front and rear legs are used for vehicle leveling during giant drilling operations. In addition to the cable drum bracket, the frame also bears the main structure of each component under the transmission system.

4. Boom

Fixed by the drill arm, triangular cylinder, square welded rear boom, tile-covered rectangular welded cylinder telescopic arm, front triangle, triangular installation front welding, rotating cylinder, welding body, and pushing beam welding steering arm bracket. The fixed seat can connect the drill arm, and the rear of the triangular cylinder is connected with the front cylinder through the hydraulic system to maintain a parallel drill arm. The bracket for installing the thruster and the rotating cylinder can make the drive shaft rotate 360°.

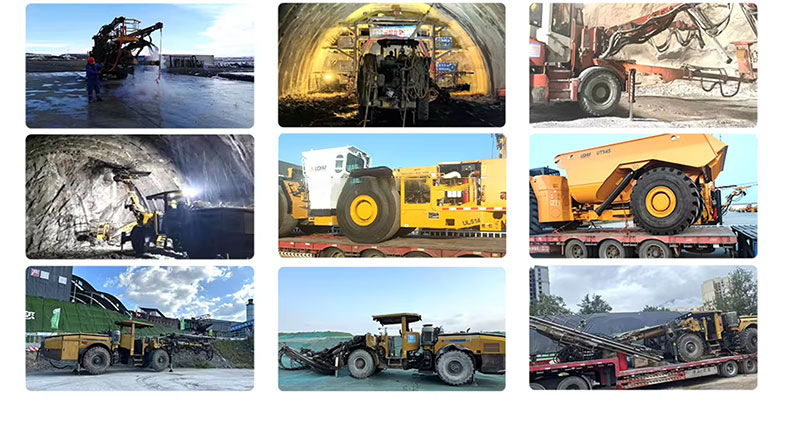

CASE STUDIES FROM VARIOUS INDUSTRIES
