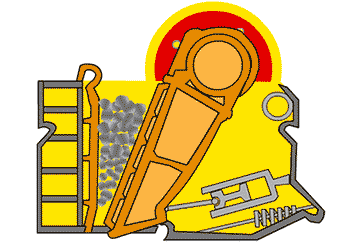

1. Jaw Crusher: The Primary Workhorse

Think of the Jaw Crusher as the powerful first step in any serious crushing circuit. It operates much like a mechanical jaw, using a moving and a stationary plate to apply immense compressive force, easily breaking down the largest and toughest rocks.

• ✔️ High Crushing Ratio: Powerfully reduces large feed material in a single pass.
• ✔️ Built to Last: Features a simple, robust structure for reliable operation and straightforward maintenance.
• ✔️ Cost-Effective: An economical choice for primary crushing with low operating costs.

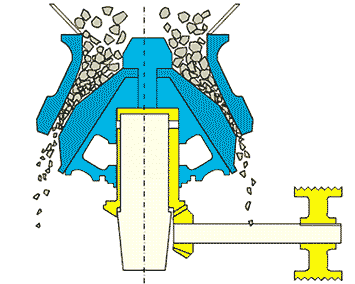

2. Cone Crusher: The Fine-Tuning Expert

While the Jaw Crusher handles the initial heavy lifting, the Cone Crusher excels at the next stage. It uses a rotating cone within a fixed bowl (mantle and concave) to compress and crush material, making it perfect for secondary and tertiary crushing of hard, abrasive rocks.

• ✔️ Superior Output: Delivers high efficiency and a massively scalable processing capacity.
• ✔️ Excellent Particle Shape: Produces uniform aggregate utilizing lamination crushing principles.
• ✔️ Long Service Life: Designed for high performance with highly durable manganese wear parts.

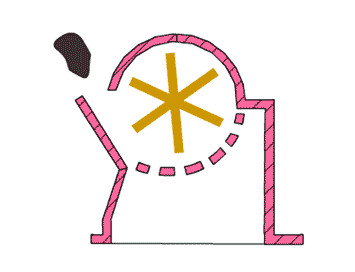

3. Impact Crusher: The Master of Shaping

The Impact Crusher works on a different principle: kinetic collision. Material is thrown at high speed by a heavy rotor (equipped with blow bars) against breaker plates, causing it to shatter along natural rock fissures. Ideal for medium-soft materials like limestone.

• ✔️ Exceptional Product Quality: Produces excellently shaped, highly cubical products with minimal flakiness.
• ✔️ High Efficiency: Offers massive output capabilities with relatively low energy consumption per ton.
• ✔️ Durable & Smart Design: The rock-on-rock internal action creates a protective layer, shielding the machine's body.

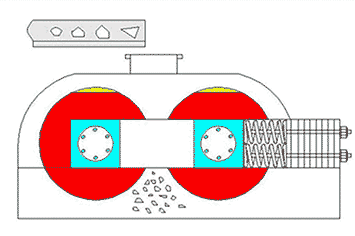

Roller crushers use compressive force as one or more rollers press material against another surface. They are excellent for achieving precise product sizes with minimal fines, especially on softer, more friable materials like coal, salt, and clay.

• Double (Twin) Roll Crusher: This classic design uses two rollers rotating towards each other to pull material into the crushing chamber. It’s compact, easy to operate, and features excellent dust seals.
• Toothed Roller Crusher: Equipped with special wear-resistant teeth, this machine splits and shears material rather than just crushing it. It offers the dual function of screening and crushing.
• Single Roll Crusher: This machine crushes material between a single toothed roller and an adjustable jaw plate. It allows for precise control over the final product size by adjusting the gap.
