The Core of the Crusher: A Comprehensive Guide to Cone Crusher Main Shafts

1. Introduction

Think of the main shaft as the backbone of your cone crusher. It’s the component that bears the brunt of every crushing cycle, translating raw rotational power into the massive force needed to break hard rock. Because it operates under extreme mechanical and thermal stress, getting the design and maintenance right isn't just a technicality—it’s the difference between a high-performing plant and a costly, unexpected shutdown.

In this guide, we’ll break down:

• What goes into a high-spec main shaft (materials and design).
• How it actually performs under load.
• The red flags: diagnosing common failures.
• Maintenance hacks to keep your equipment running longer.

2. Design & Material Selection: What’s Under the Hood?

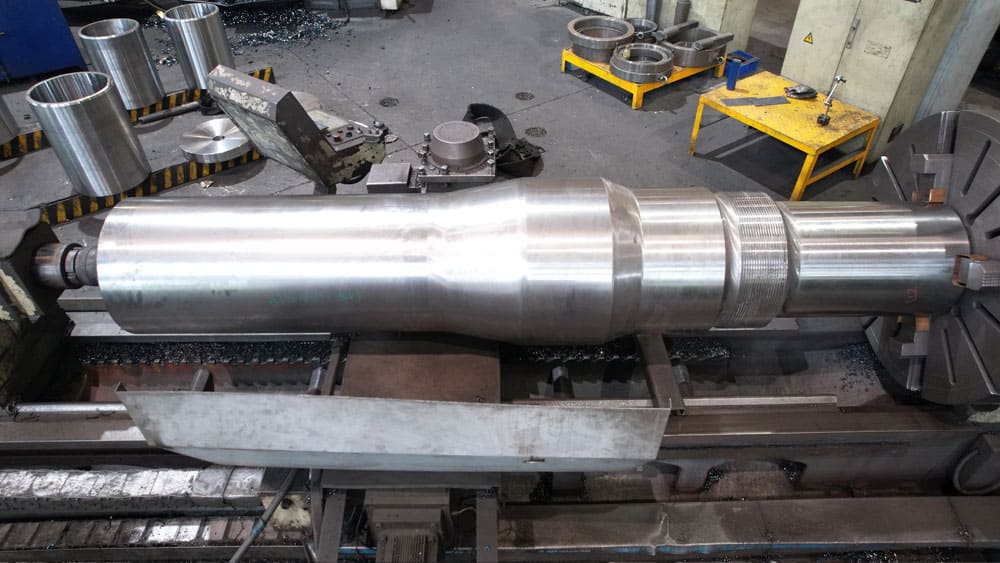

A main shaft isn’t just a solid piece of steel; it’s a precision instrument. Every section is engineered for a specific job:

• Bearing Journals: These are the high-precision "contact zones." They must be flawlessly machined to seat the bearings.
• The Tapered Section: This is the interface for the mantle. It’s where the actual crushing force is transferred.
• Drive Keyway & Threaded End: These ensure the entire assembly stays locked and slip-free, even under peak torque.

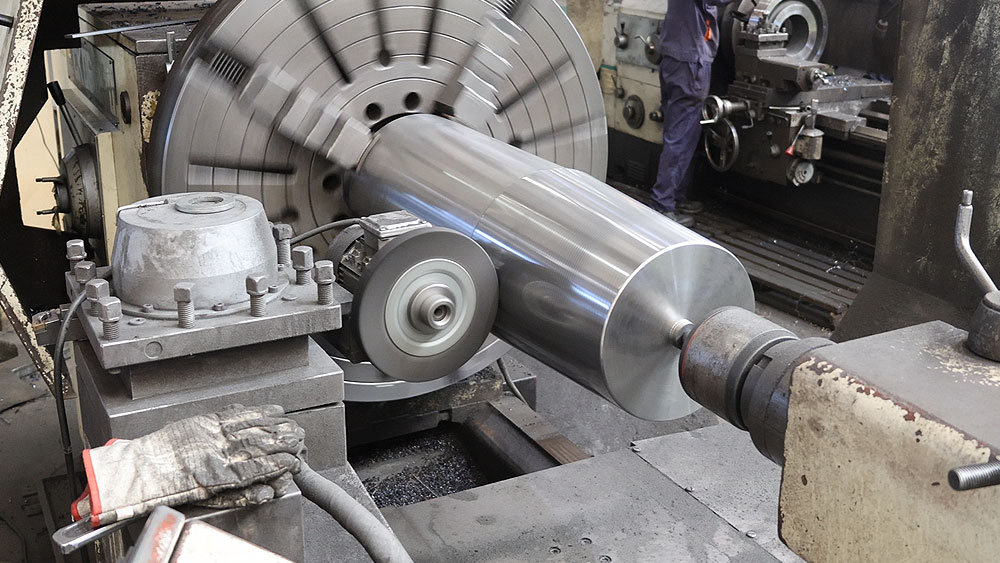

Why Material Choice Matters

Most standard shafts are forged from 4340 or 4140 alloy steel because of their exceptional fatigue resistance. However, for harsh environments, we often recommend Induction Hardening or Nitriding to toughen the surface against wear, or even Stainless Steel if you're dealing with highly corrosive materials.

3. The Main Shaft in Motion

How does that rotation turn into crushing power? It’s a coordinated dance of parts.

The gear assembly drives the eccentric bushing, which in turn forces the main shaft into a gyratory motion. As the shaft "wobbles" in a controlled conical path, the mantle repeatedly squeezes the feed material against the stationary concave. To keep things precise, the hydraulic system constantly tweaks the Closed Side Setting (CSS), balancing product size against the inevitable wear and tear on the liners.

4. Troubleshooting: Failure Modes & Diagnosis

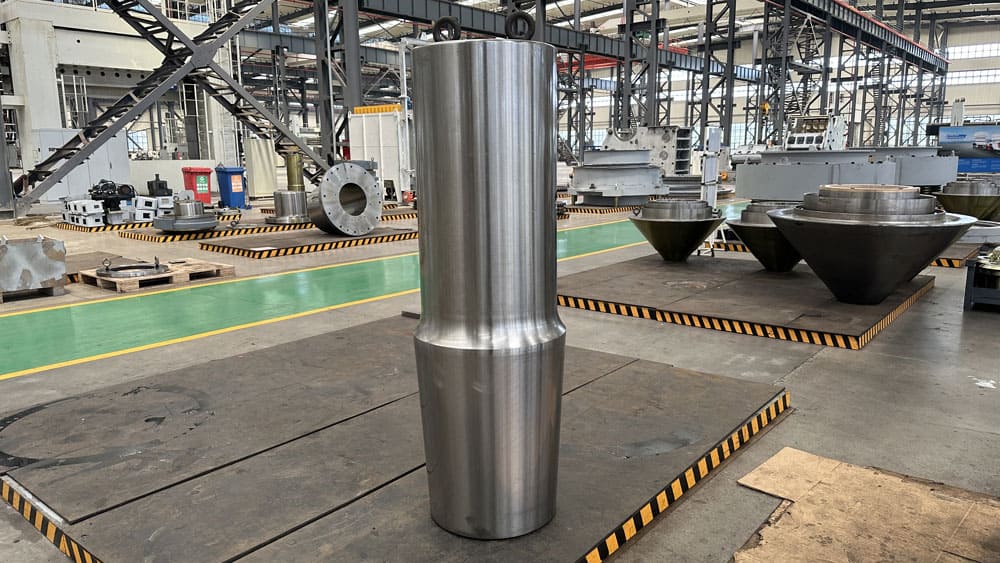

5. Proactive Maintenance: The "No-Downtime" Strategy

If you wait for a noise to start, you’ve waited too long.

Critical Daily/Weekly Moves:

• Clean Oil is Everything: Use high-spec lubricants and don't skimp on the filtration.
• Check the Alignment: Keep shaft concentricity within ±0.05 mm. Anything more is a ticking time bomb.
• Listen to the Bearings: Watch for pitting or "indentation" marks during routine stops.

The 6-Month Deep Dive:

Every half-year, your team should measure the shaft runout (keep it under 0.1 mm) and pull oil samples to check for metal particles. Finding bronze or steel shavings early can save you a $50,000 repair bill later.

6. The Big Decision: Repair or Replace?

When a shaft shows wear, you have a choice.

When to Repair:

If you have minor scoring or journal wear, regrinding is often enough. For small, non-structural cracks, metal stitching can save the shaft. Even worn threads can be recut if the rest of the metal is sound.

When to Replace:

Don't risk it if:

• Cracks go deeper than 30% of the diameter. That’s a catastrophic failure waiting to happen.
• You see torsional twisting (the shaft is literally warped).
• Surface degradation is so bad that bearings keep failing prematurely.

Pro-Tip for Installation: Always use induction heaters for bearings. Never, ever use an open flame—it destroys the temper of the metal and leads to early fatigue.

7. Final Takeaways

The main shaft is where the "work" of the crusher happens. Its life expectancy is dictated by two things: the quality of the original forging and the discipline of your maintenance team.
